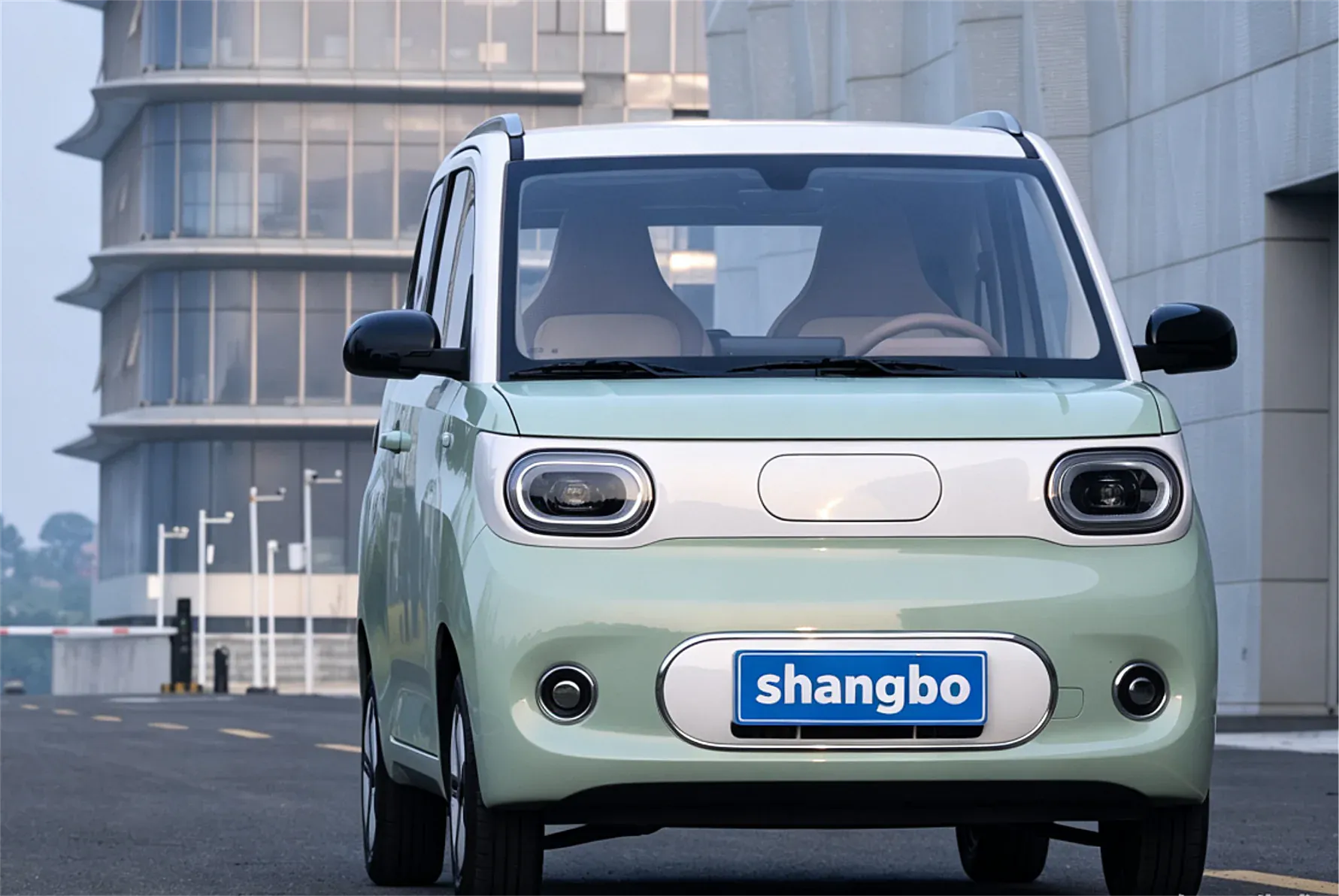

GV01 parked on a city corner
Home/Models/GV01
Shanbo · Micro EV · Rear-wheel drive

GV01 Urban Micro EV

215km max. range
30kW peak power
4.3m turning radius
01 Overview

3,064 mm of
city solution.

GV01 brings the permanent-magnet motor, reduction gear and rear axle together as one unit on the back axle. The nose is freed — shorter overhang, lower floor — so a 3,064 mm body holds a 2,010 mm wheelbase and a turning radius of just 4.3 m.

Body3064 × 1493 × 1629 mm
Wheelbase2010 mm
Front / rear track1290 / 1306 mm
Curb weight700 kg (215 km) · 645 kg (179 km)
Ground clearance130 mm · 138 mm
Tyres145/70 R12

Two battery options, two city radii:

215 km — 17.3 kWh LFP, 30 kW peak power, 92 N·m, with 35-minute DC fast charging (SOC 30–80%).

179 km — 13.4 kWh LFP / NMC, 20 kW peak power, 85 N·m, 6.8 h to full on AC.

Top speed 100 km/h; drive modes are Eco, Eco+, Standard and Sport, with energy recuperation across the range.

02 Structure

The motor sits on the rear axle.
The space is yours.

Rear-wheel drive isn't a stance, it's a consequence of layout: no front driveshafts, so the front wheels only steer — and can steer further.

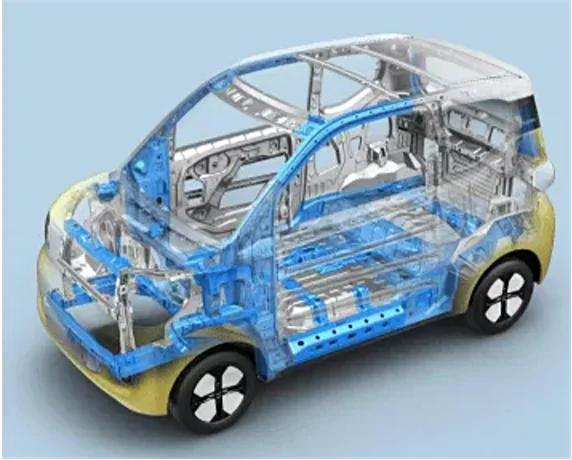

GV01 body structure
01

Rear-engine, rear-drive

Motor and rear axle are one unit, so the torque path is as short as it gets and the nose is free for steering.

02

2,010 mm wheelbase

Wheels pushed to the corners: more than 65% of the 3,064 mm body is wheelbase.

03

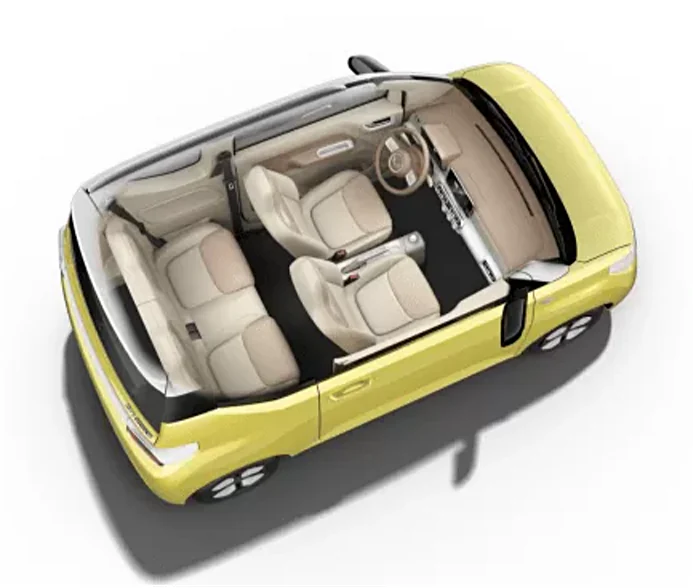

Walk-through front row

No bulkhead between driver and passenger — park against a wall and step out on the other side.

04

50:50 split rear seats

Backrests fold independently and flat, opening into the boot; no explanation needed when you are loading.

Body: unitary sheet-metal construction with a high-strength steel front beam. Image is a structural illustration.

03 Cabin

A small car's cabin
shouldn't feel small.

8-inch central touchscreen, 7-inch colour LCD cluster, three USB ports, Bluetooth audio and phone. The two-tone cabin comes in milk toffee or brownie black.

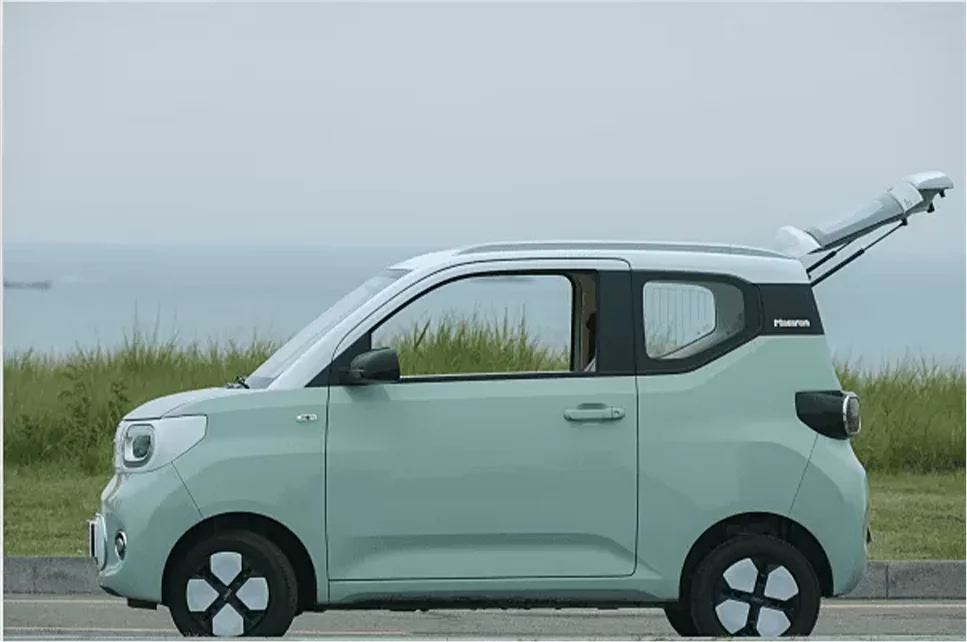

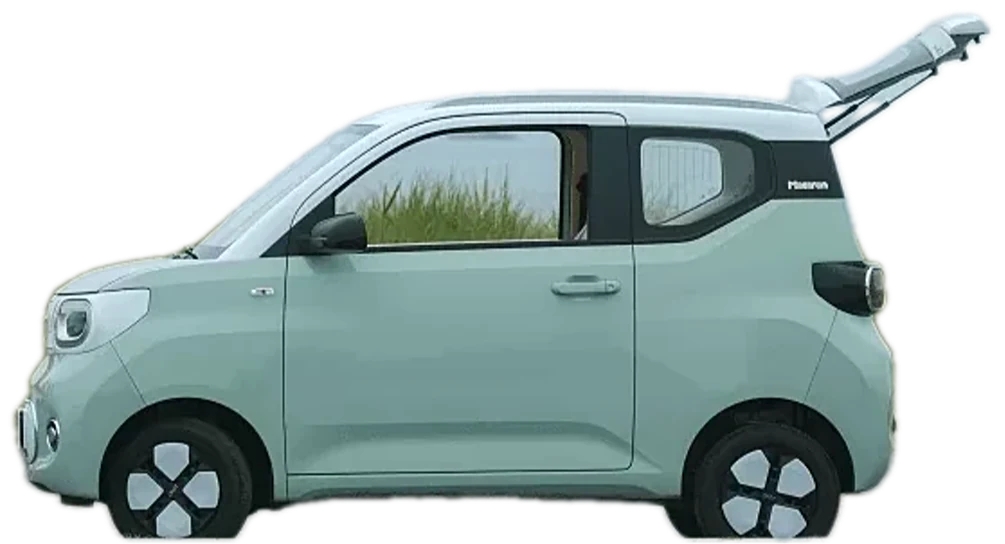

GV01 in profile LED headlamps Two-tone body Rear motor and axle 145/70 R12 tyres
Touchscreen
8-inch touch
Cluster
7-inch LCD
USB ports
3
Climate
Electric heating & cooling
04 Safety

A small car
still needs real safety.

ABRS airbags and the high-strength steel front beam are the first line; ABS + EBD, automatic unlock and collision mitigation are the second.

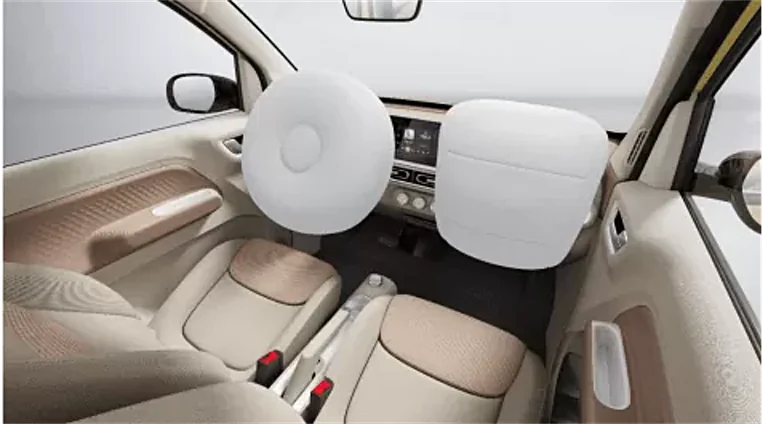

GV01 front airbags deployed
ABRS twin airbagsAirbag restraint

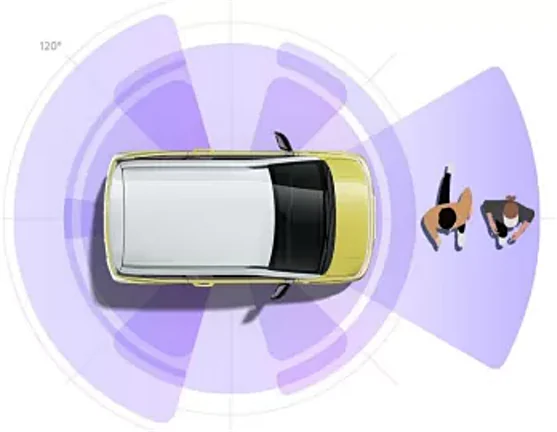

GV01 parking radar and low-speed warning coverage
Parking radar · low-speed soundParking & AVAS

ABS + EBD

Keeps steering authority under braking on a wet road, and stops the rear locking first.

High-strength steel beam

The beam takes the energy first, so the passenger cell stays intact.

Automatic unlock on impact

Doors unlock after a collision, for occupants and for rescue.

TPMS

Flags pressure loss immediately, before a slow puncture becomes a problem.

Reversing camera

The rear view follows the gear selector; in a tight bay you see every centimetre behind you.

Low-speed warning

The car makes itself heard at low speed for pedestrians; EPS handles the steering feel.

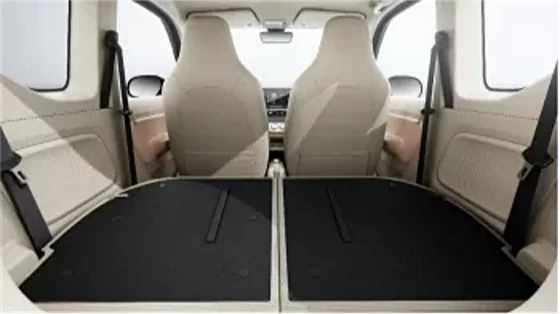

GV01 luggage space with rear seats folded
05 Space

Fold the rear seats.
The city fits too.

The rear backrests split 50:50 and fold flat into one continuous floor with the boot. A commuter on weekdays, a removals van at the weekend.

Rear seats50:50 split, fold flat
FrontWalk-through
TailgateLift-up
StorageDoors + console + boot
06 Palette

Five colours,
one city mood.

Light awning yellow, milk coffee, avocado green, white peach and iris blue. All five are available with a two-tone body, and the cabin comes in milk toffee or brownie black.

#E8DCA0 Light awning yellow
#C9B49A Milk coffee
#C3D3BB Avocado green
#EBD0CA White peachWhite peach powder
#A9BCD2 Iris blue
InteriorMilk toffee / Brownie black
Body finishTwo-tone available
Available onGV01 · 215 km / 179 km

Screens and print may differ; the car at the dealer is the reference.

07 By the numbers

Every figure here answers one specific move the city asks of you.

0km
Max. range
0min
DC fast charge 30–80%
0mm
Wheelbase
0m
Turning radius
09 Specification

The full numbers.

The two columns are 215 km (17.3 kWh) and 179 km (13.4 kWh); where only one value is shown, both versions match.

● Standard— Not availableSpecifications from the vehicle documentation
Book a GV01 test drive See GV10
10 Next

Take it into the city.
One drive is enough.

Leave your details and we'll put you in touch with the nearest dealer. The route includes a narrow-lane U-turn and a basement car park.

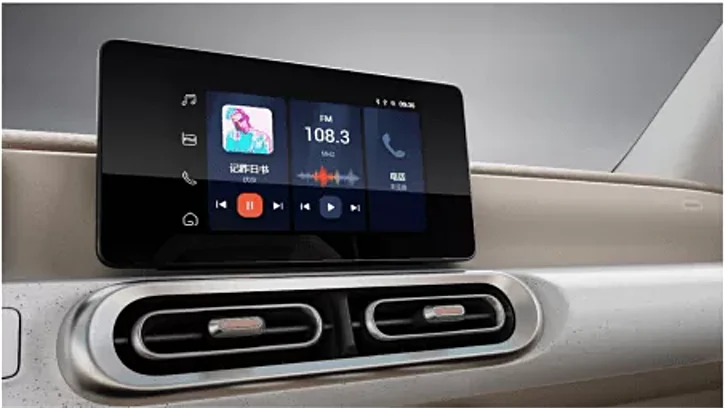

GV01 touchscreen interface
